| Multi-Gigabit Switch
| TP-LINK SX3832 Omada 24-Port 10GBASE-T L2+ Managed Switch with 8 10GE SFP+ Slots

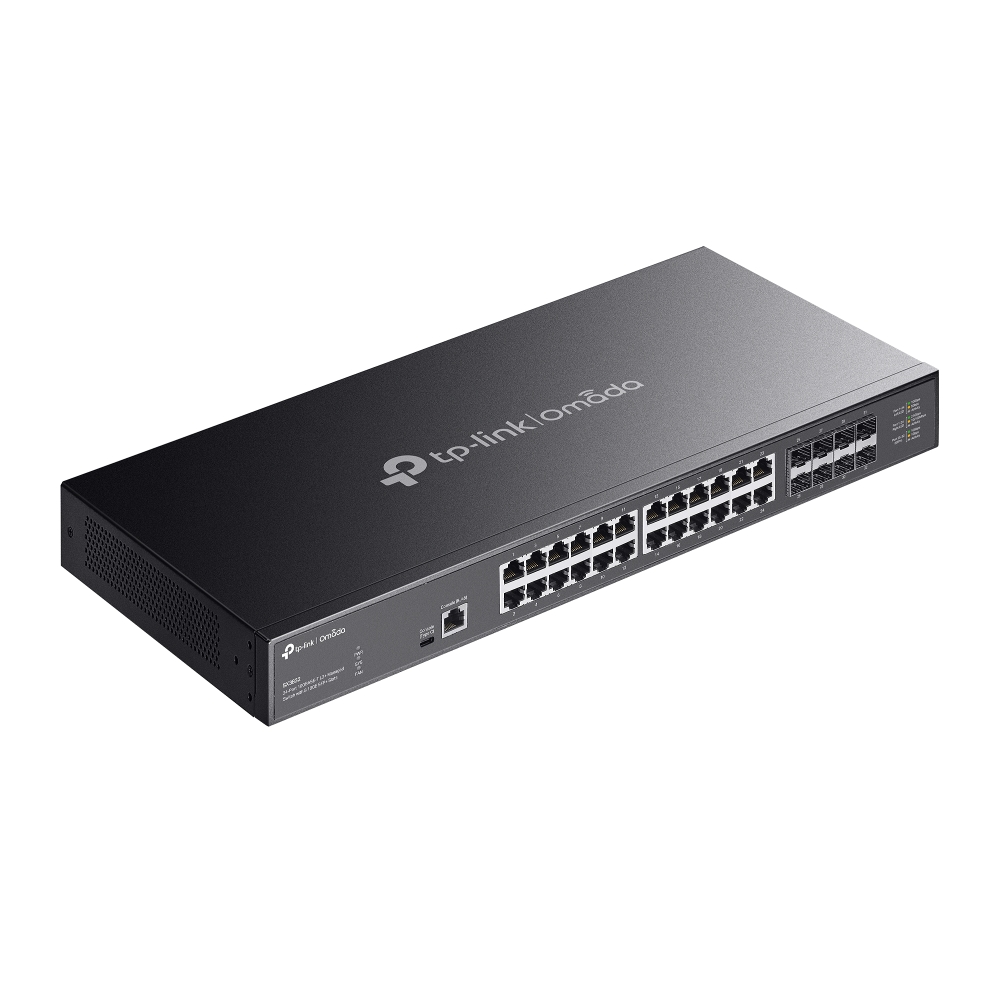

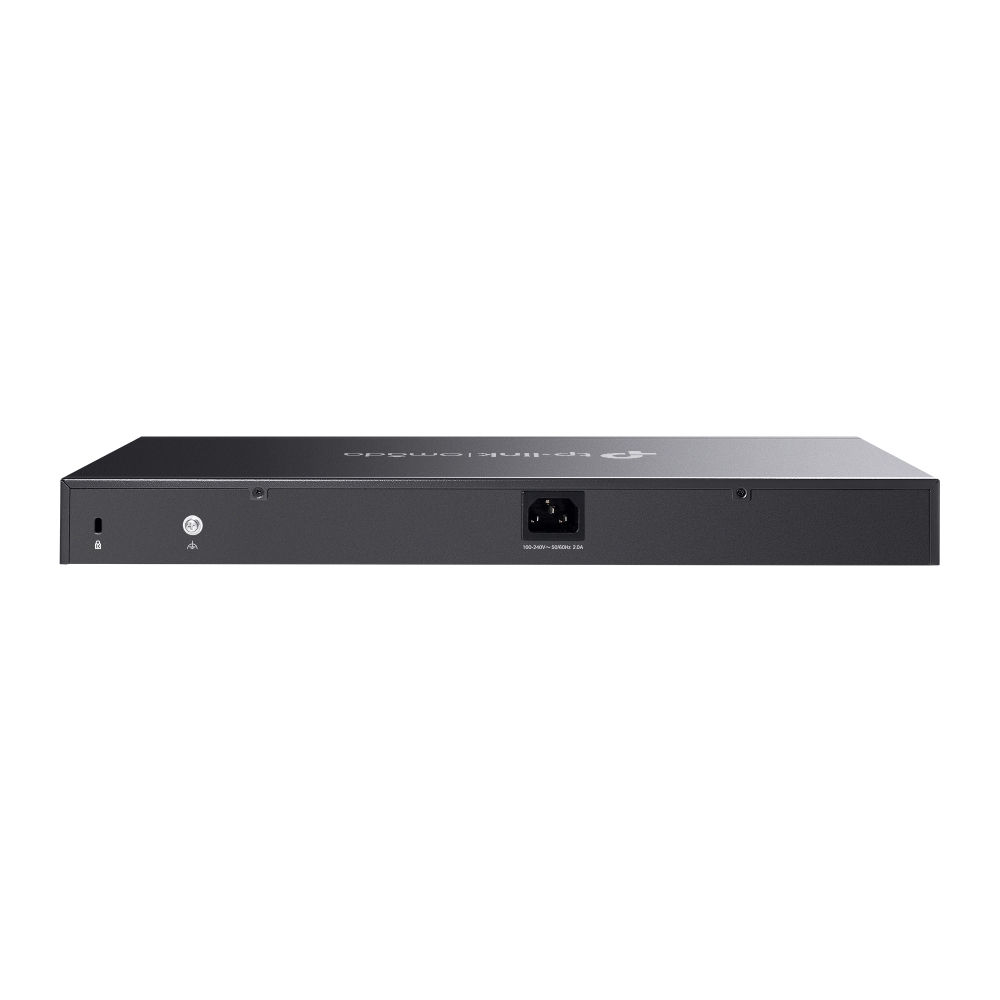

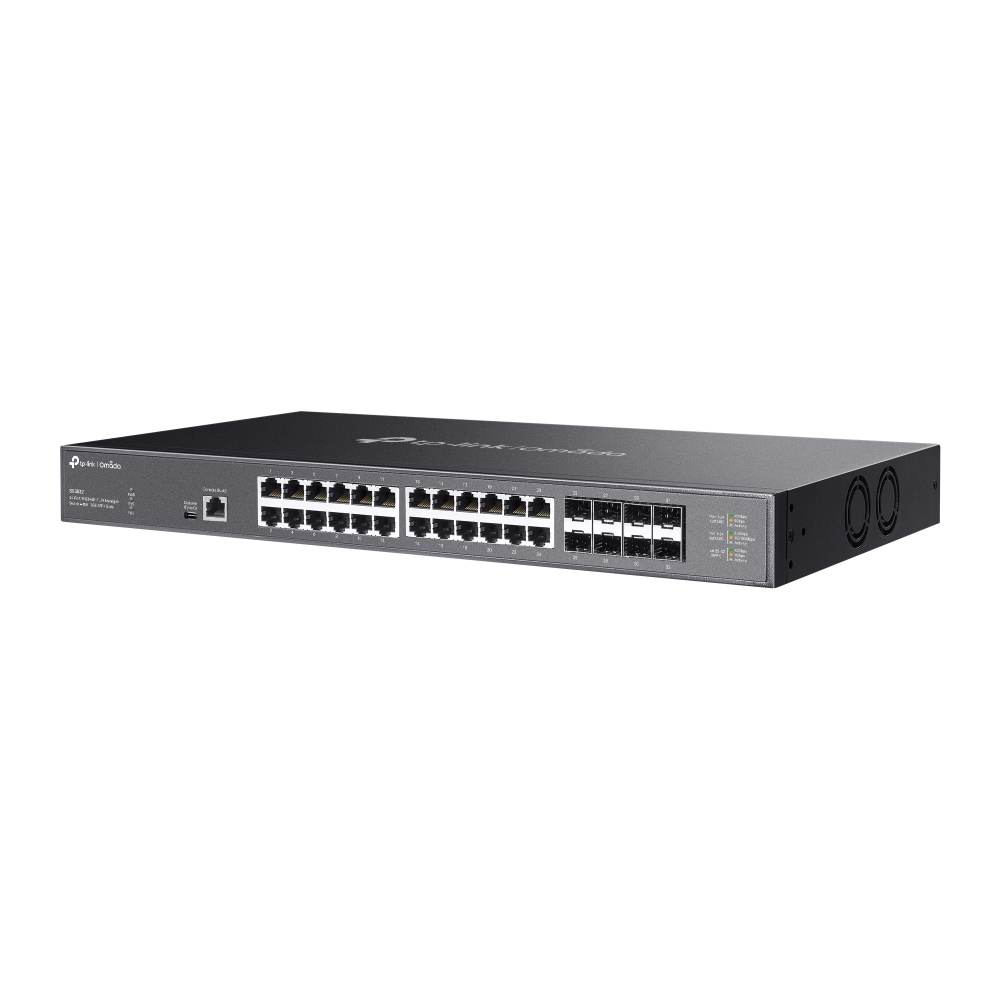

TP-LINK SX3832 Omada 24-Port 10GBASE-T L2+ Managed Switch with 8 10GE SFP+ Slots
เพิ่มเมื่อ: 2025-05-09 14:49:14.0
แก้ไขล่าสุด: 2025-05-09 14:55:54.0
เบอร์โทรติดต่อ: 062-5193997 , 02-4582949
อีเมลล์: krieng.nt@gmail.comSWITCH (สวิตซ์) TP-LINK SX3832 Omada 24-Port 10GBASE-T L2+ Managed Switch with 8 10GE SFP+ Slots
TP-LINK SX3832
SWITCH (สวิตซ์) TP-LINK SX3832 Omada 24-Port 10GBASE-T L2+ Managed Switch with 8 10GE SFP+ Slots
- 24× 1/2.5/5/10 Gbps RJ45 ports
- 8× 1/10 Gbps SFP+ slots
- 640 Gbps switching capacity
- Centralized cloud management via the web or the Omada app
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
- ERPS supports rapid protection and recovery in a ring topology
- Durable metal casing and rack-mountable design
Interface :
• 24× 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX)
• 8× 1/10G SFP+ Slots**
• 1× RJ45 Console Port
• 1× USB Type C Console Port
Fan Quantity : 2
Physical Security Lock : √
Power Supply : 100-240 V AC~50/60 Hz
Dimensions ( W x D x H ) : 17.3×8.7×1.7 in (440×220×44 mm)
Mounting : Rack Mountable
Max. Power Consumption :
104.9 W (@110V/60Hz)
106.5 W (@220V/50Hz)
Max Heat Dissipation :
357.81 BTU/hr (@110 V/60 Hz)
363.23 BTU/hr (@220 V/50 Hz)
Switching Capacity : 640 Gbps
Packet Forwarding Rate : 240 Mpps
MAC Address Table : 32 K
Packet Buffer Memory : 24 Mbit
Jumbo Frame : 9 KB
Omada App : Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management :
• Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
Cloud Access : Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning : Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features :
• Web-based GUI
• Command Line Interface (CLI) through the console port, telnet
• SNMP v1/v2c/v3: Trap/Inform, RMON (1,2,3,9 groups)
• SDM Template
• DHCP/BOOTP Client
• 802.1ab LLDP/LLDP-MED
• DHCP AutoInstall
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• IEEE 802.3az Energy Efficient Ethernet (EEE)
• Password Recovery
• SNTP
• System Log
Package Content :
• SX3832 Switch
• Power Cord
• Console Cable
• Quick Installation Guide
• Rackmount Kit
• Rubber Feet
System Requirements : Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
